Voltage divider
By DarthVader
Date: 2024-11-15
Topic: 211 see comments
Post views: 303

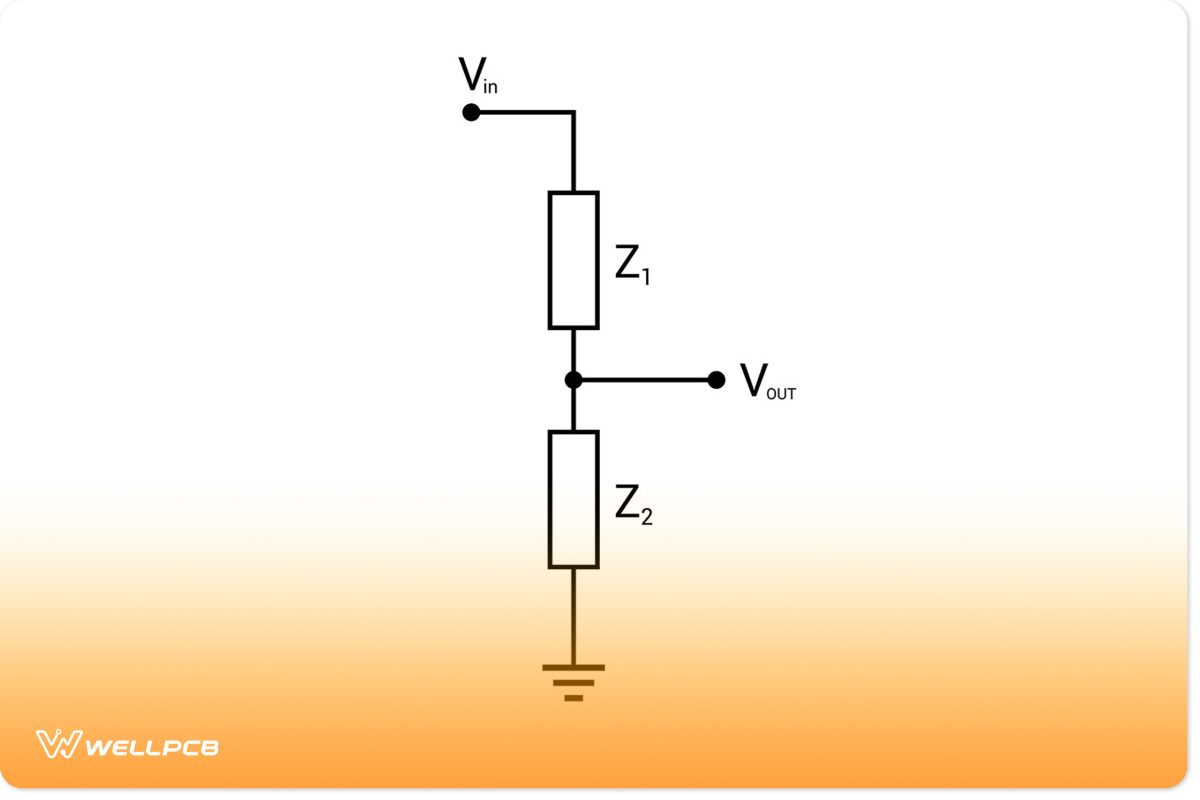

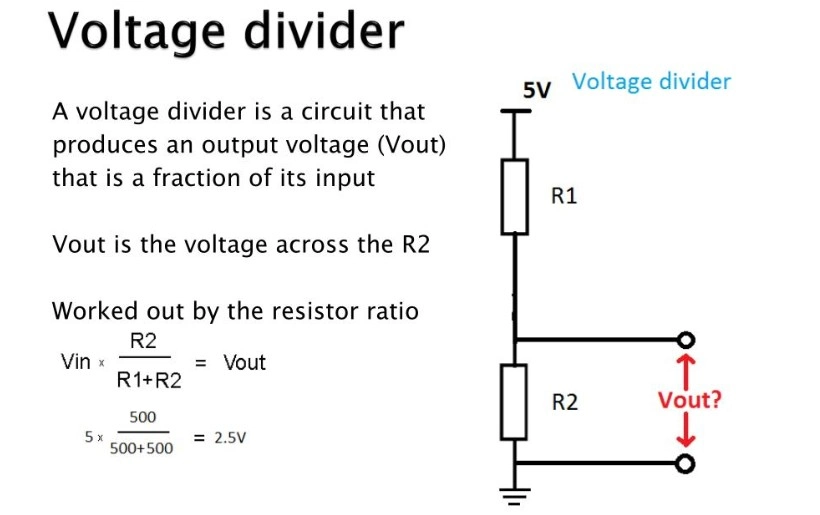

Voltage divider equation:
Vout = Vs×\(\frac{\color{red}{R_2}}{\color{red}{R_1 + R_2}}\)
Vout = Vs × (\frac{\color{red}{R2}}{\color{red}{R1 + R2}}\)
If there are multiple resistors such as in a voltage divider network, then all the resistors above and below the node of interest must be accounted for:
Vout = Vs×\(\frac{\color{red}{R_{below}}}{\color{red}{R_{above} + R_{below}}}\)
Vout = Vs × (\frac{\color{red}{R_below}}{\color{red}{R_above + R_below}}\)
Where:
Rbelow = The combined resistance of all the resistors below the node.
Rabove = The combined resistance of all the resistors above the node.
R1:
R1 = (R2Vs − R2Vout) / (Vout)
For multiple resistors in the network below the node use:
R1 = (RbelowVs − RbelowVout) / (Vout)
Voltage dividers are used to:
- Reduce the amplitude of a signal or voltage.
- Create a reference voltage.
